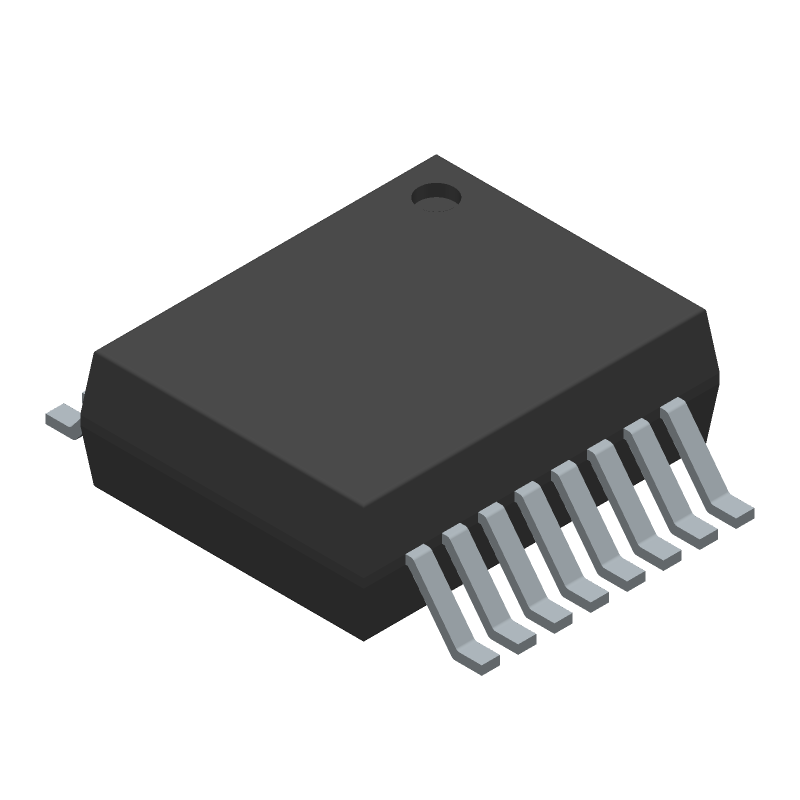

VND7030AJTR datasheet by STMicroelectronics

VND7030AJTR Frequently Asked Questions (FAQs)

• What is the maximum current rating of the VND7030AJTR?
  The maximum current rating of the VND7030AJTR is 1.5A per channel, with a total current rating of 3A for all channels combined.
• How do I configure the VND7030AJTR for half-bridge or full-bridge operation?
  The VND7030AJTR can be configured for half-bridge or full-bridge operation by connecting the appropriate pins and setting the enable inputs (EN) accordingly. Refer to the application note AN4553 for detailed configuration guidelines.
• What is the minimum input voltage required for the VND7030AJTR?
  The minimum input voltage required for the VND7030AJTR is 5.5V, with a recommended operating voltage range of 6.5V to 18V.
• How do I protect the VND7030AJTR from overcurrent and overheating?
  The VND7030AJTR has built-in overcurrent protection and thermal shutdown features. Additionally, external protection circuits can be implemented using sense resistors and comparators to detect overcurrent conditions and thermal overload.
• Can the VND7030AJTR be used in high-frequency applications?
  Yes, the VND7030AJTR is suitable for high-frequency applications up to 100 kHz, with a typical rise and fall time of 10 ns. However, the maximum frequency of operation depends on the specific application and PCB layout.
