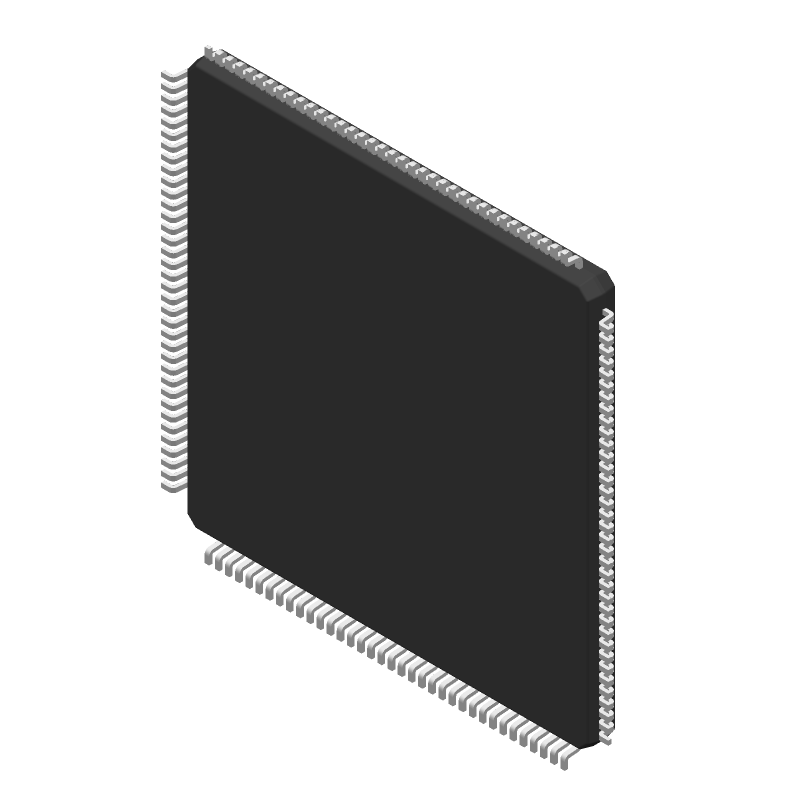

TM4C123BH6PGEIR datasheet by Texas Instruments

TM4C123BH6PGEIR Frequently Asked Questions (FAQs)

• What is the maximum clock frequency of the TM4C123BH6PGEIR?
  The maximum clock frequency of the TM4C123BH6PGEIR is 80 MHz.
• How do I configure the pin muxing on the TM4C123BH6PGEIR?
  The pin muxing on the TM4C123BH6PGEIR can be configured using the Pin Muxing Register (PMCn) and the Pin Configuration Register (PCn).
• What is the purpose of the NMI (Non-Maskable Interrupt) pin on the TM4C123BH6PGEIR?
  The NMI pin is used to trigger a non-maskable interrupt, which is a high-priority interrupt that cannot be masked or disabled by software.
• How do I use the ADC on the TM4C123BH6PGEIR?
  The ADC on the TM4C123BH6PGEIR can be used by configuring the ADC clock, selecting the ADC channel, and starting the ADC conversion using the ADCCTL0 register.
• What is the maximum current rating of the GPIO pins on the TM4C123BH6PGEIR?
  The maximum current rating of the GPIO pins on the TM4C123BH6PGEIR is 4 mA per pin.
