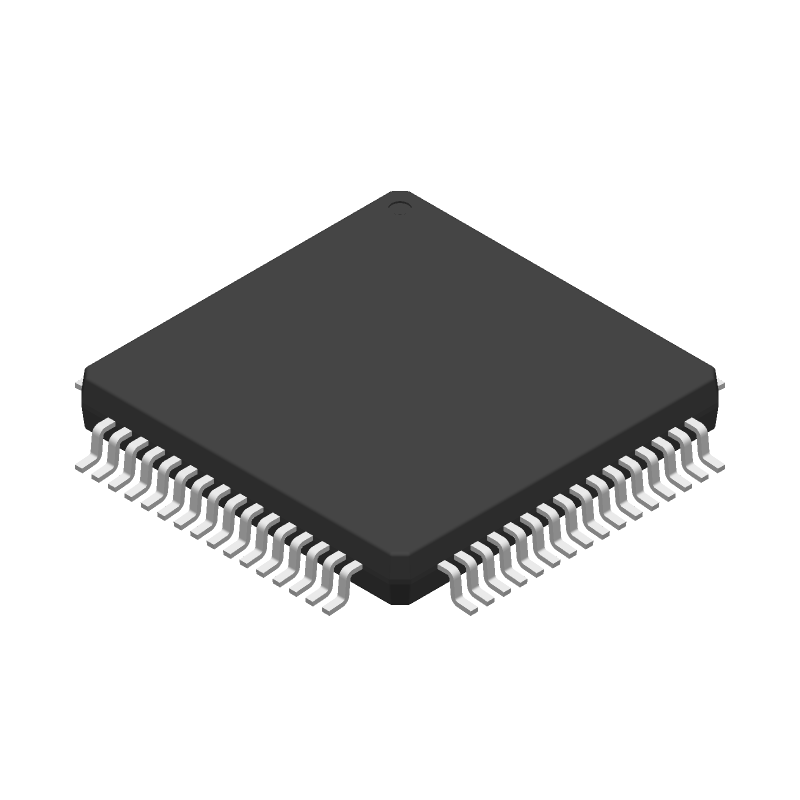

TM4C1237D5PMI datasheet by Texas Instruments

TM4C1237D5PMI Frequently Asked Questions (FAQs)

• What is the maximum clock frequency of the TM4C1237D5PMI?
  The maximum clock frequency of the TM4C1237D5PMI is 80 MHz.
• How do I configure the pin muxing on the TM4C1237D5PMI?
  The pin muxing on the TM4C1237D5PMI can be configured using the Pin Configurator tool in the TI Resource Explorer or by modifying the GPIO registers directly in the code.
• What is the maximum amount of current that can be sourced/sunk by the GPIO pins?
  The maximum amount of current that can be sourced by the GPIO pins is 4 mA, and the maximum amount of current that can be sunk is 8 mA.
• How do I use the ADC on the TM4C1237D5PMI?
  The ADC on the TM4C1237D5PMI can be used by configuring the ADC registers, selecting the input channel, and starting the conversion. The ADC result can be read from the ADC FIFO.
• What is the purpose of the NMI pin on the TM4C1237D5PMI?
  The NMI (Non-Maskable Interrupt) pin on the TM4C1237D5PMI is used to trigger an interrupt that cannot be masked by the CPU, typically used for critical events such as a watchdog timer expiration.
