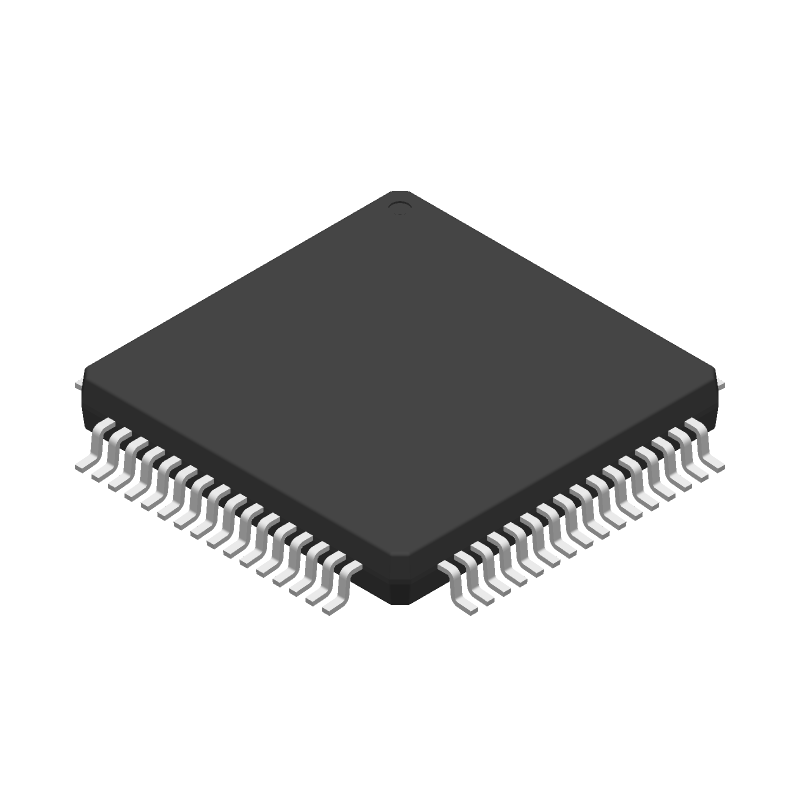

TM4C1230D5PMI datasheet by Texas Instruments

TM4C1230D5PMI Frequently Asked Questions (FAQs)

• What is the maximum clock frequency of the TM4C1230D5PMI?
  The maximum clock frequency of the TM4C1230D5PMI is 80 MHz.
• How do I configure the pin muxing on the TM4C1230D5PMI?
  The pin muxing on the TM4C1230D5PMI can be configured using the Pin Muxing Register (PMCn) and the Pin Configuration Register (PCn). Refer to the datasheet for specific register addresses and bit fields.
• What is the purpose of the NMI (Non-Maskable Interrupt) pin on the TM4C1230D5PMI?
  The NMI pin is used to trigger a non-maskable interrupt, which is a high-priority interrupt that cannot be masked or disabled by software. It is typically used for critical system events, such as a watchdog timer expiration or a power failure.
• How do I use the ADC on the TM4C1230D5PMI?
  The ADC on the TM4C1230D5PMI can be used by configuring the ADC control registers (ADCnCTL) and the ADC sequence registers (ADCnSS). Refer to the datasheet for specific register addresses and bit fields.
• What is the purpose of the JTAG interface on the TM4C1230D5PMI?
  The JTAG interface on the TM4C1230D5PMI is used for debugging and programming the device. It allows for real-time debugging, flash programming, and boundary scan testing.
