The recommended land pattern for the TCSM1C106M8R can be found in the ROHM Semiconductor's 'Chip Capacitor Land Pattern' document, which provides guidelines for PCB layout and footprint design.
The TCSM1C106M8R is a moisture-sensitive device. To handle it safely, follow the guidelines in IPC/JEDEC J-STD-033C, which provides procedures for handling and storing moisture-sensitive devices.
The maximum allowable voltage derating for the TCSM1C106M8R is 80% of the rated voltage. Exceeding this limit may reduce the capacitor's lifespan or cause premature failure.
Yes, the TCSM1C106M8R is suitable for high-frequency applications. However, it's essential to consider the capacitor's impedance characteristics and resonant frequency to ensure optimal performance.
The ESR of the TCSM1C106M8R can be determined by measuring the impedance of the capacitor at a specific frequency (e.g., 100 kHz) using an impedance analyzer or a network analyzer.

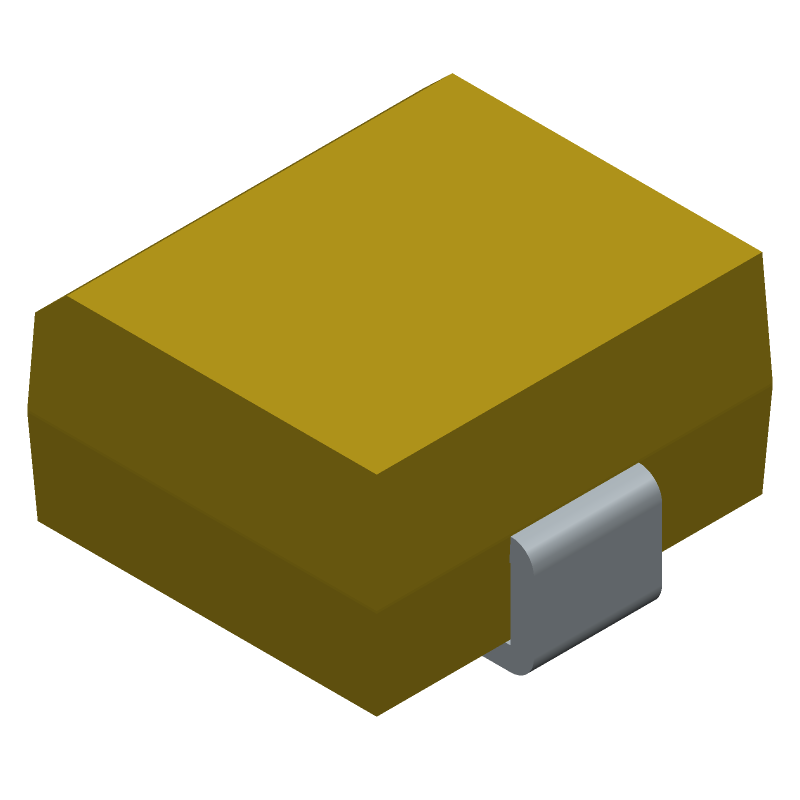

TCSM1C106M8R datasheet
by ROHM Semiconductor
