A recommended PCB layout for optimal thermal performance would be to use a thermal pad on the bottom of the package, connected to a large copper area on the PCB, and to use multiple vias to dissipate heat to the other side of the board. Additionally, keeping the PCB traces and components away from the thermal pad can help reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device. It's also crucial to follow proper PCB design and layout guidelines to minimize thermal resistance.
The recommended soldering profile for the SZMM5Z12VT5G is a reflow profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a ramp rate of 3°C/second. It's essential to follow the recommended soldering profile to prevent damage to the device and ensure reliable operation.
To handle ESD protection during handling and assembly, it's recommended to follow standard ESD precautions, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. Additionally, ensure that the device is handled in a static-safe environment, and avoid touching the pins or leads during handling.
The recommended storage and handling conditions for the SZMM5Z12VT5G include storing the devices in their original packaging, in a dry, cool place, away from direct sunlight and moisture. The devices should be handled in a clean, ESD-safe environment, and should not be exposed to temperatures above 40°C or humidity above 60%.

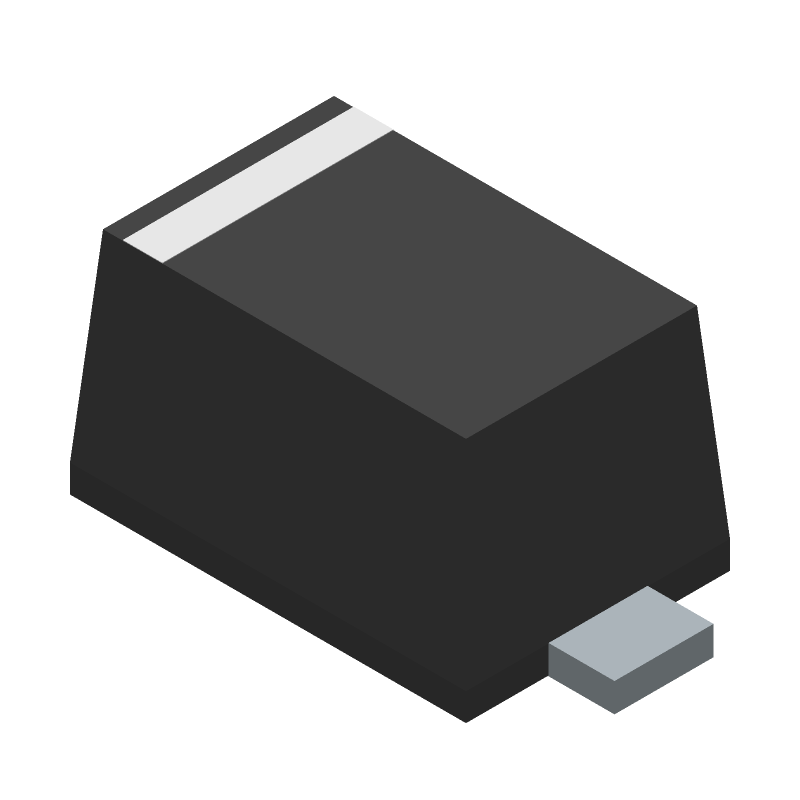

SZMM5Z12VT5G datasheet
by onsemi
