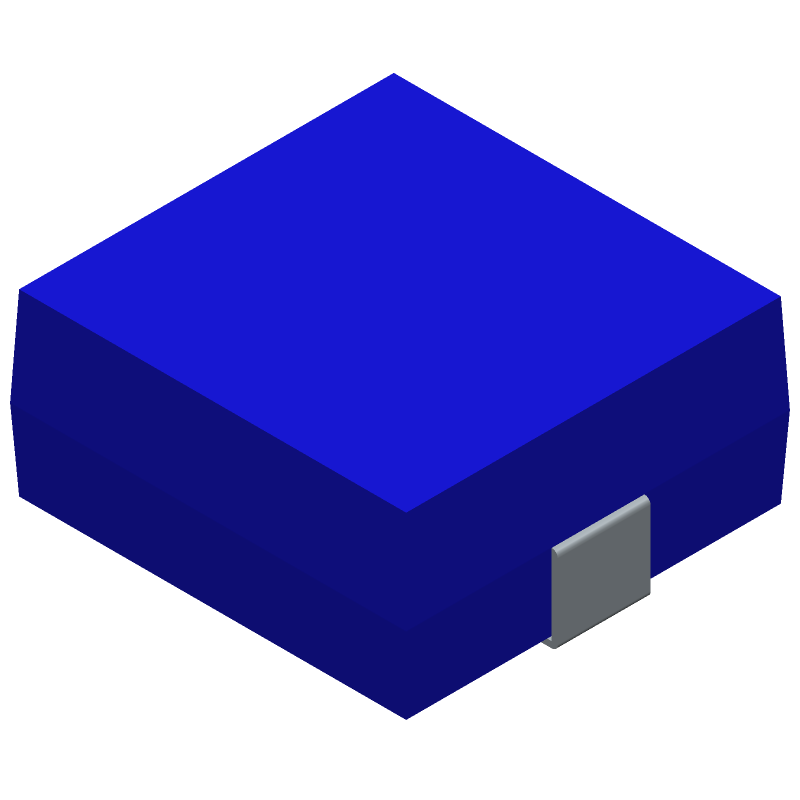

SPD62R-472M datasheet by API Delevan

SPD62R-472M Frequently Asked Questions (FAQs)

• What is the recommended land pattern for the SPD62R-472M?
  The recommended land pattern for the SPD62R-472M is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
• How do I ensure the SPD62R-472M is properly soldered?
  To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the SPD62R-472M?
  The maximum operating temperature range for the SPD62R-472M is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
• Can the SPD62R-472M be used in high-frequency applications?
  Yes, the SPD62R-472M is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the component's self-resonant frequency and the PCB layout to minimize parasitic effects.
• How do I handle the SPD62R-472M during assembly and rework?
  Handle the SPD62R-472M by the body, avoiding touching the leads or the component's surface. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
