Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components and their values.
The maximum power handling capability of the SCN-2-45+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling capability based on the operating frequency and temperature.
While the SCN-2-45+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching speed and frequency should be limited to minimize the risk of overheating and damage. It's recommended to consult with Mini-Circuits' application engineers for specific guidance.
The operating temperature range of the SCN-2-45+ is -40°C to +85°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper heat sinking and thermal management to maintain optimal performance.

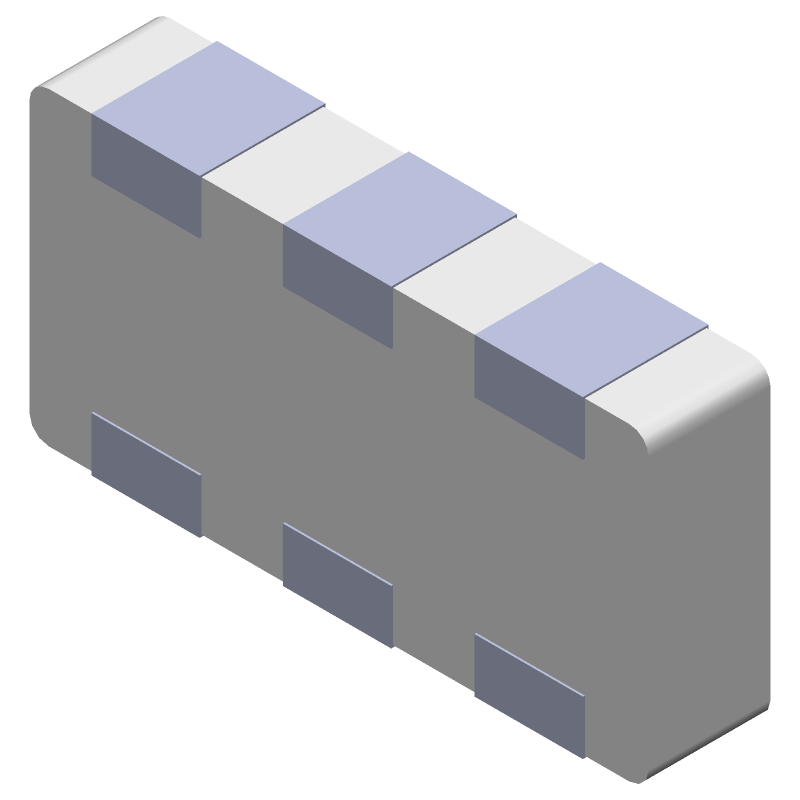

SCN-2-45+ datasheet
by Mini-Circuits
