Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The QCN-12A+ has a nominal impedance of 50 ohms. To impedance match, you can use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
The maximum power handling of the QCN-12A+ is 1 watt. Exceeding this power rating can cause damage to the device or affect its performance. It's essential to ensure that the input power is within the specified range to maintain the device's integrity.
The QCN-12A+ is rated for operation up to 85°C. While it can tolerate high temperatures, its performance may degrade above 70°C. If you need to operate in a high-temperature environment, consider using a heat sink or a thermally enhanced package.
To troubleshoot issues with the QCN-12A+, start by checking the input power and impedance matching. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use a spectrum analyzer or a network analyzer to measure the device's performance and identify any anomalies.

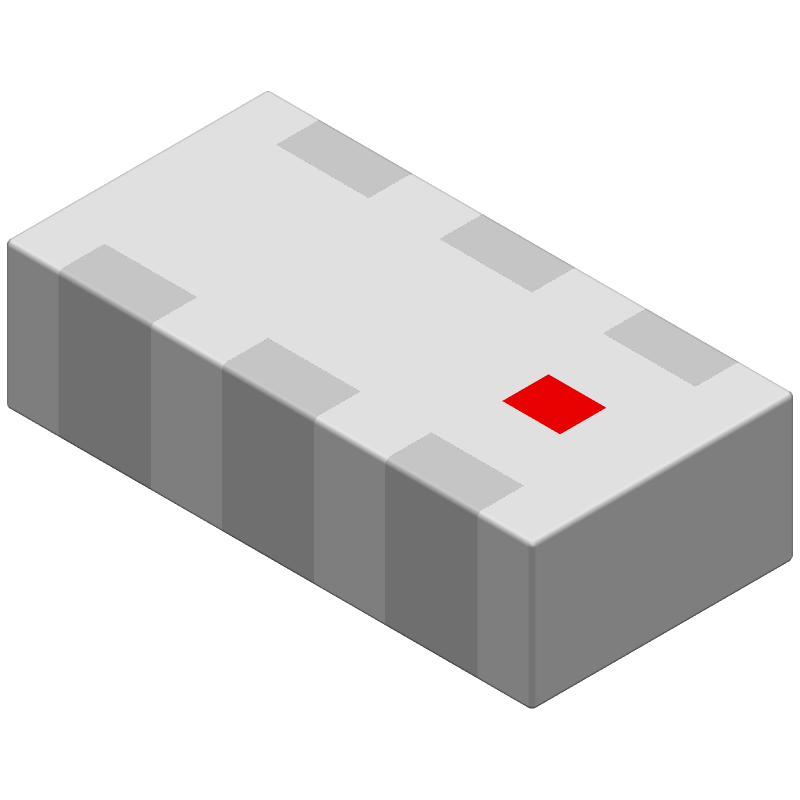

QCN-12A+ datasheet
