A good PCB layout for the NX3L1T5157GMZ should include a solid ground plane, short traces, and minimal vias to reduce signal loss and noise. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation over the full temperature range, ensure that the device is properly decoupled, and the PCB is designed to minimize thermal gradients. Also, consider using a thermal pad or heat sink to dissipate heat.
Operating the NX3L1T5157GMZ at a lower voltage supply than the recommended 1.8V may result in reduced performance, increased power consumption, and potential reliability issues. It is not recommended to operate the device below the minimum recommended voltage.
To handle ESD protection, ensure that the device is handled and stored in an ESD-protected environment. Use ESD-protected workstations, and consider adding ESD protection devices, such as TVS diodes, to the PCB design.
For high-reliability applications, consider using a redundant design, implementing error detection and correction mechanisms, and ensuring that the device is operated within its recommended specifications. Also, perform thorough testing and validation to ensure the device meets the required reliability standards.

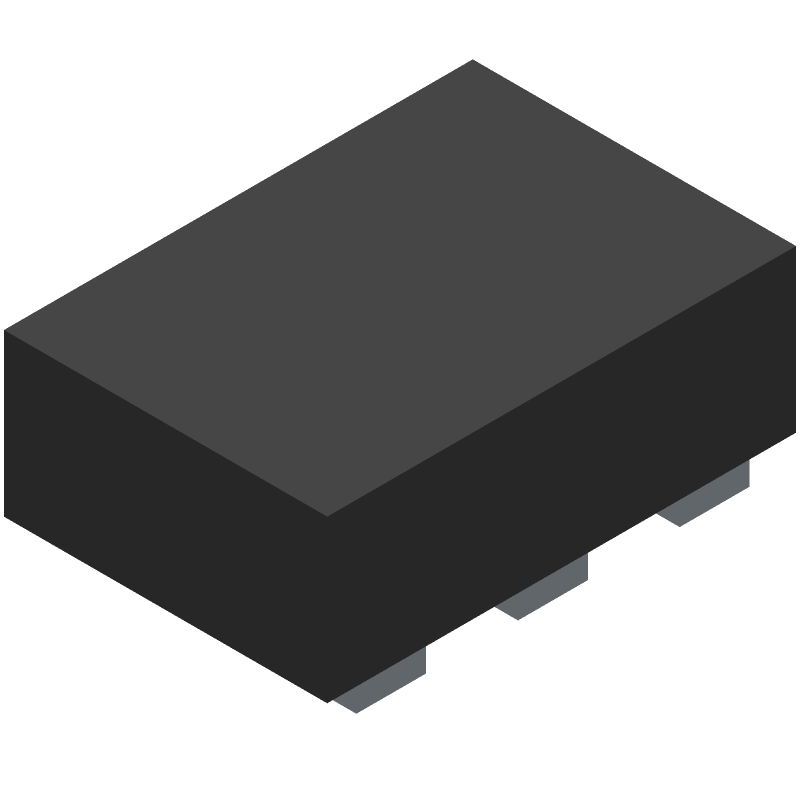

NX3L1T5157GMZ datasheet
