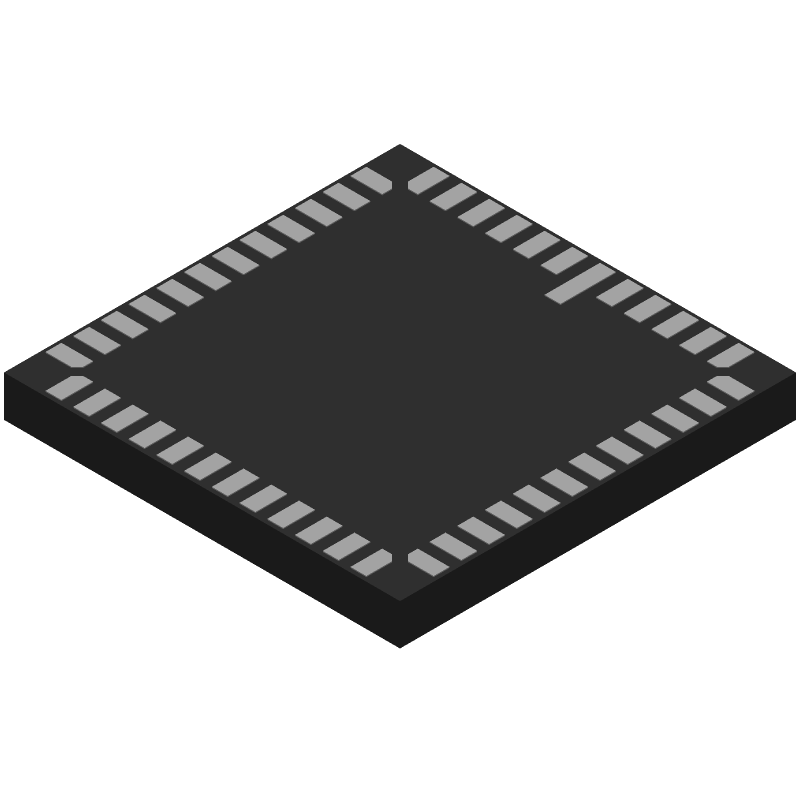

MT9F002I12-N4000-DP datasheet by onsemi

MT9F002I12-N4000-DP Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for the MT9F002I12-N4000-DP?
  The recommended PCB layout and thermal management guidelines can be found in the onsemi application note AND9393/D. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
• How do I optimize the MT9F002I12-N4000-DP's performance for low-light conditions?
  To optimize the sensor's performance in low-light conditions, adjust the exposure time, gain, and black level calibration. Additionally, consider using onsemi's recommended noise reduction and image processing algorithms.
• What is the maximum clock frequency for the MT9F002I12-N4000-DP, and how does it affect power consumption?
  The maximum clock frequency for the MT9F002I12-N4000-DP is 540 MHz. Increasing the clock frequency can improve image quality but also increases power consumption. A balance between image quality and power consumption should be considered based on the specific application requirements.
• How do I implement and optimize the MT9F002I12-N4000-DP's built-in features, such as binning and windowing?
  The MT9F002I12-N4000-DP's built-in features, such as binning and windowing, can be implemented and optimized using onsemi's recommended programming sequences and register settings. Refer to the datasheet and application notes for detailed information.
• What are the recommended test patterns and procedures for characterizing the MT9F002I12-N4000-DP's performance?
  Onsemi provides recommended test patterns and procedures for characterizing the MT9F002I12-N4000-DP's performance in the application note AND9394/D. These tests can help evaluate the sensor's image quality, noise performance, and other key characteristics.
