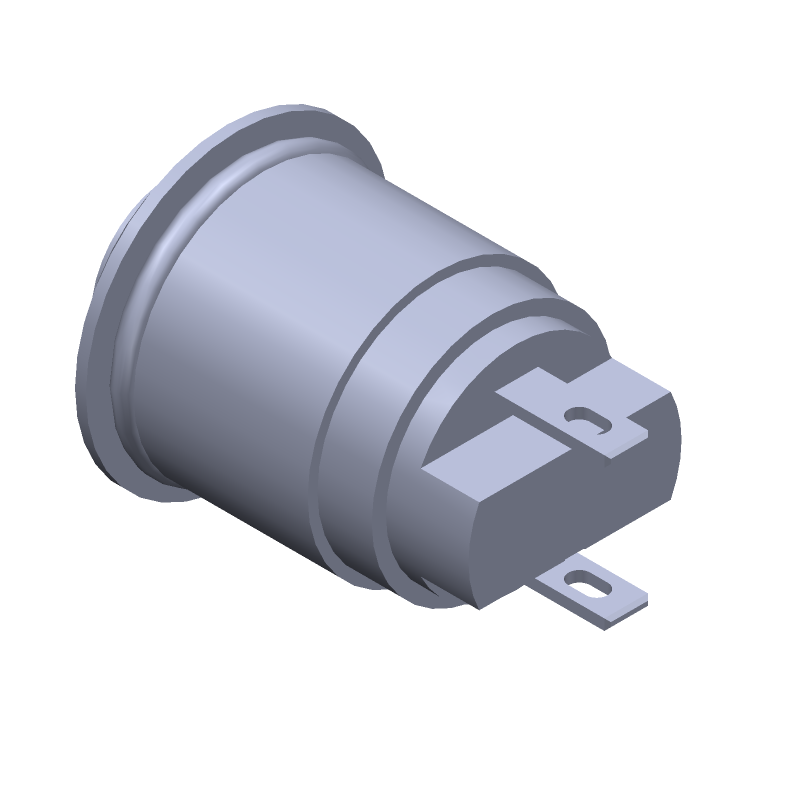

    Part Img MAV0120/3D2RD024 datasheet by Bulgin

    • Switches - Pushbutton Switches - SWITCH PUSHBUTTON SPST-NO 2A 36V
    • Original
    • Yes
    • Unknown
    • Active
    • EAR99
    • 8536.50.70.00
    • 8536.50.70.00
    • Powered by Findchips Logo Findchips

    MAV0120/3D2RD024 datasheet preview

    MAV0120/3D2RD024 Frequently Asked Questions (FAQs)

    • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Bulgin application notes.
    • Yes, the MAV0120/3D2RD024 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration, and 3 axes, according to the IEC 60068-2-6 standard.
    • Yes, the MAV0120/3D2RD024 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
    • The operating temperature range of the MAV0120/3D2RD024 is -40°C to +125°C, making it suitable for use in a wide range of applications.
    • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes from 20 AWG to 28 AWG, but the wire stripping length and screw torque may need to be adjusted accordingly.
