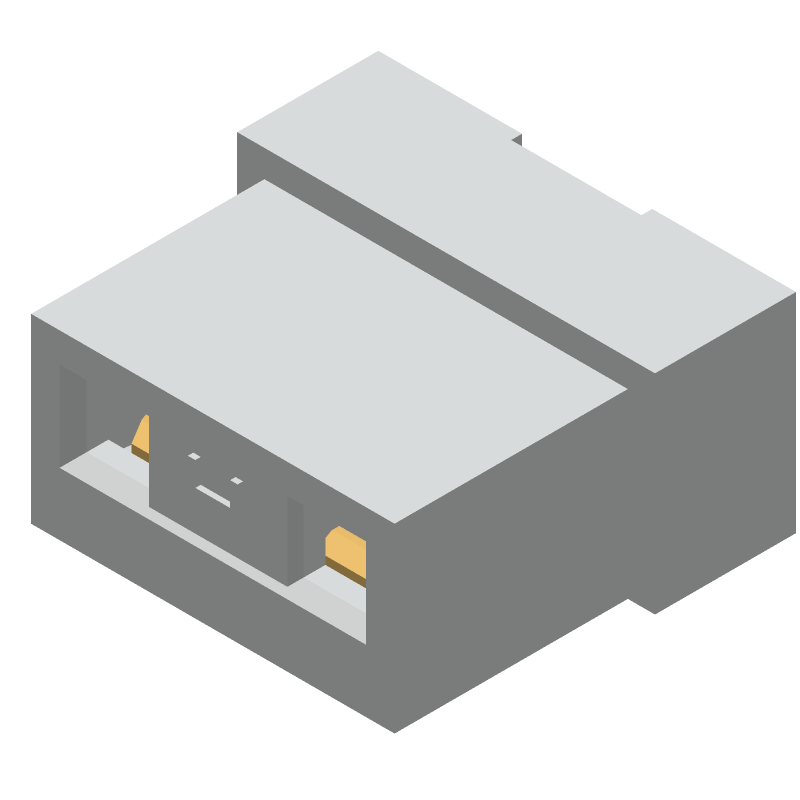

M22-1930005 datasheet by Harwin

M22-1930005 Frequently Asked Questions (FAQs)

• What is the recommended torque for the M22-1930005 connector?
  The recommended torque for the M22-1930005 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environment.
• Is the M22-1930005 connector suitable for high-vibration applications?
  Yes, the M22-1930005 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
• Can the M22-1930005 connector be used in harsh environments, such as high-temperature or high-humidity applications?
  Yes, the M22-1930005 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance of 95% RH at 40°C.
• What is the mating cycle life of the M22-1930005 connector?
  The M22-1930005 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating are required.
• Is the M22-1930005 connector compatible with automated assembly processes?
  Yes, the M22-1930005 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.
