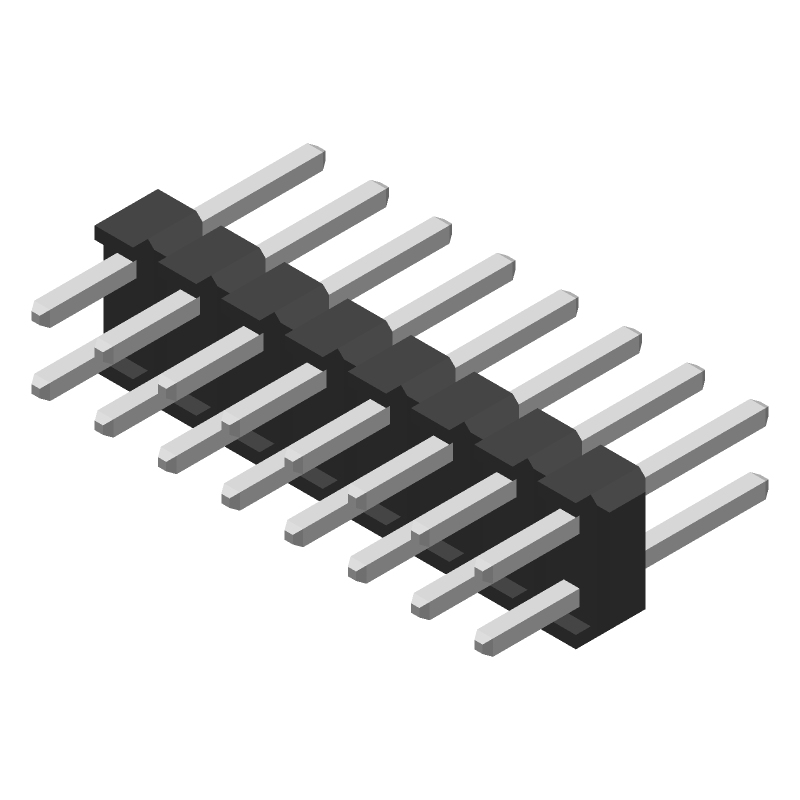

M20-9760846 datasheet by Harwin

M20-9760846 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw threads?
  The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
• Can I use this connector in high-vibration applications?
  Yes, the M20-9760846 is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, and 3 axes.
• Is this connector suitable for outdoor use?
  Yes, the M20-9760846 has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
• What is the operating temperature range of this connector?
  The operating temperature range of the M20-9760846 is -40°C to +125°C, making it suitable for a wide range of applications.
• Can I use this connector with a PCB or do I need a specific mating connector?
  The M20-9760846 is a PCB-mount connector, and it can be directly mounted to a printed circuit board. However, it requires a mating connector, such as the M20-9760845, to complete the connection.
