Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
The LMH1251MTX/NOPB requires a specific bias voltage and current to operate optimally. Ensure that the device is biased according to the recommended operating conditions in the datasheet, and that the power supply is stable and noise-free.
The maximum input signal amplitude is not explicitly stated in the datasheet, but it's generally recommended to keep the input signal amplitude below 1Vpp to avoid overdriving the device and causing distortion or damage.
Troubleshooting issues with the LMH1251MTX/NOPB requires a systematic approach. Start by verifying the power supply and bias conditions, then check the input and output signal waveforms using an oscilloscope. Consult the datasheet and application notes for guidance on troubleshooting common issues.
While the LMH1251MTX/NOPB is optimized for 50-ohm systems, it can be used in non-50-ohm systems with some adjustments. However, this may require additional impedance matching networks or termination resistors to ensure optimal performance.

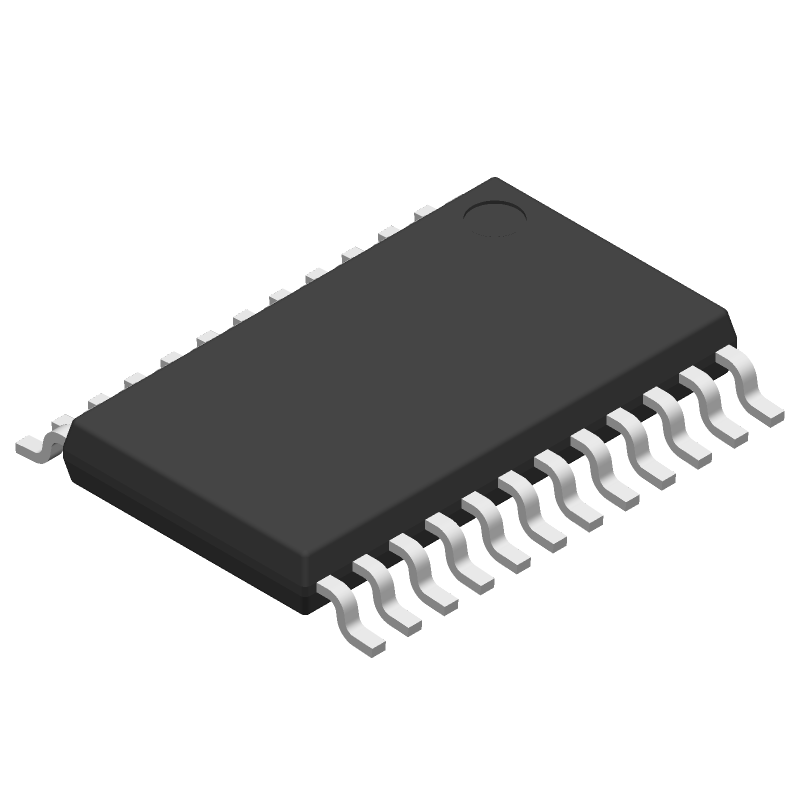

LMH1251MTX/NOPB datasheet
by Texas Instruments
