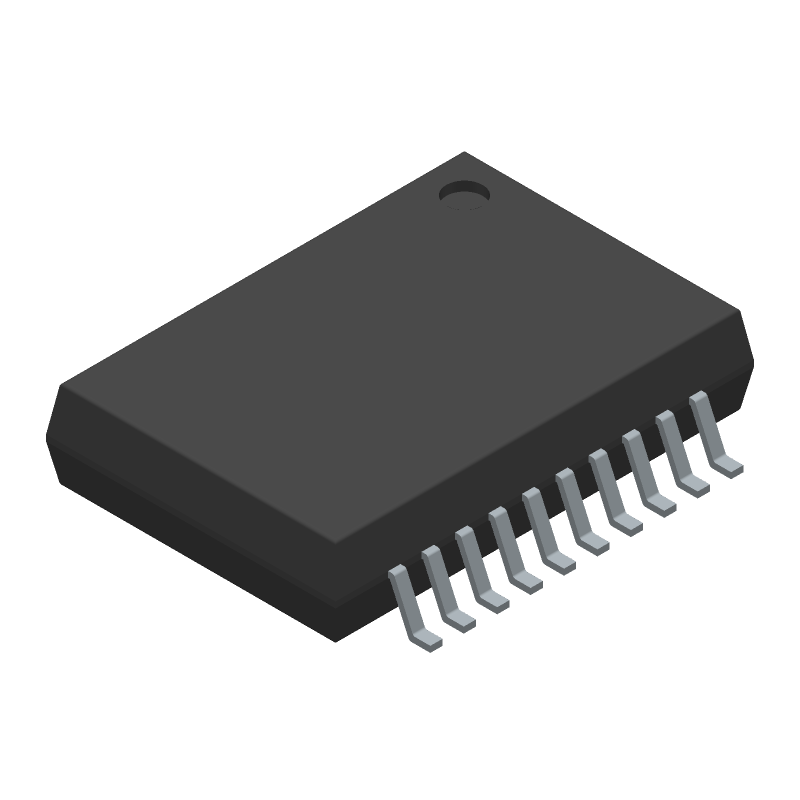

L9958TR datasheet by STMicroelectronics

L9958TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the L9958TR?
  STMicroelectronics provides a recommended PCB layout in the application note AN4395, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
• How do I configure the L9958TR for a specific motor type?
  The L9958TR is a flexible device that can be configured for different motor types through the use of external resistors and capacitors. The configuration depends on the motor type, such as stepper, brushless DC, or DC motor. Refer to the application note AN4395 for specific configuration examples.
• What is the maximum operating temperature range for the L9958TR?
  The L9958TR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
• Can I use the L9958TR with a different voltage supply than the recommended 12V?
  Yes, the L9958TR can operate with a voltage supply between 6V and 24V, but the recommended operating voltage is 12V. However, the device's performance and thermal characteristics may vary depending on the supply voltage. Consult the datasheet and application notes for specific guidance.
• How do I troubleshoot issues with the L9958TR, such as motor stalling or overheating?
  STMicroelectronics provides a troubleshooting guide in the application note AN4395, which covers common issues and their possible causes. Additionally, the device has built-in diagnostic features, such as overcurrent and overtemperature protection, that can help identify the root cause of the issue.
