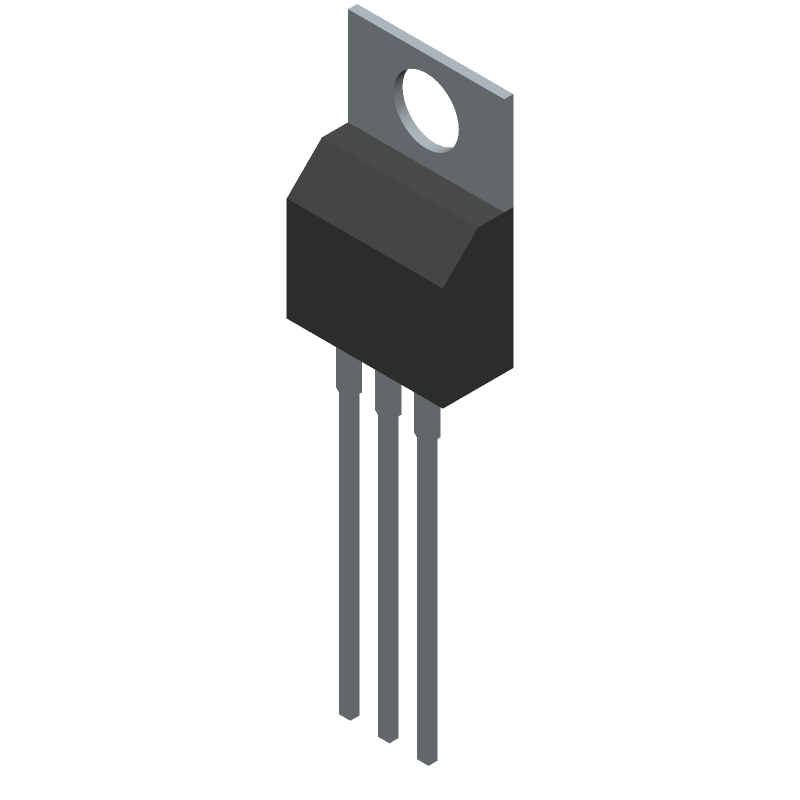

L7915ACV-DG datasheet by STMicroelectronics

L7915ACV-DG Frequently Asked Questions (FAQs)

• What is the maximum input voltage that the L7915ACV-DG can handle?
  The maximum input voltage for the L7915ACV-DG is 35V, but it's recommended to keep it below 25V for optimal performance and to prevent overheating.
• How do I ensure the stability of the output voltage?
  To ensure stability, a minimum output capacitance of 1uF is recommended, and the ESR (Equivalent Series Resistance) should be less than 5 ohms. Additionally, the input capacitor should be at least 1uF with an ESR less than 3 ohms.
• What is the maximum current that the L7915ACV-DG can supply?
  The L7915ACV-DG can supply up to 1.5A of output current, but it's recommended to keep it below 1A for optimal performance and to prevent overheating.
• How do I protect the L7915ACV-DG from overheating?
  To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the input voltage and output current within the recommended limits.
• Can I use the L7915ACV-DG in a high-temperature environment?
  The L7915ACV-DG is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper heat dissipation and derate the output current accordingly.
