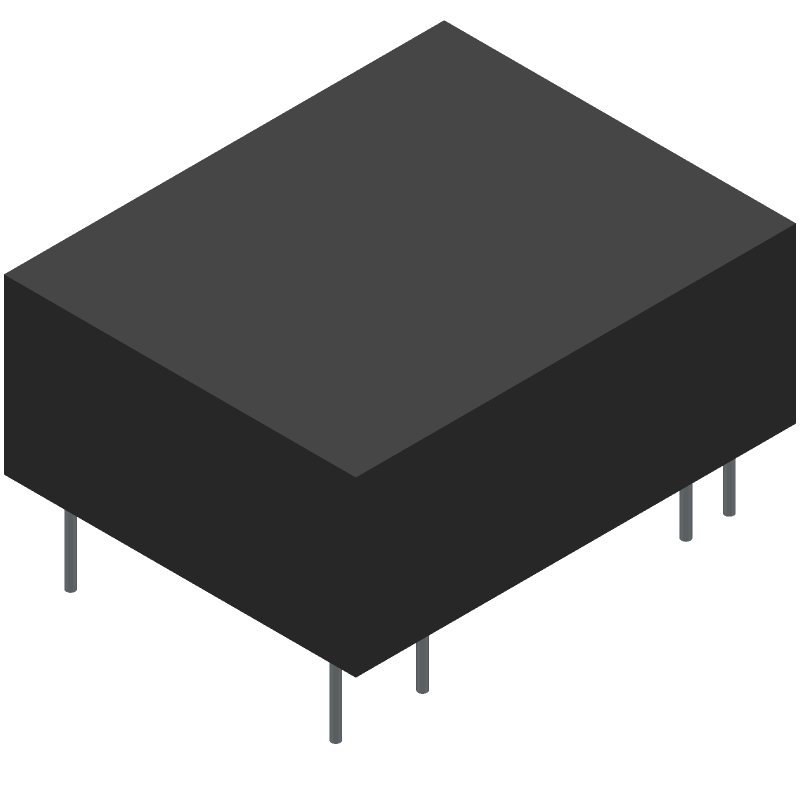

JCA0605D03 datasheet by XP Power

JCA0605D03 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat efficiently. A minimum of 1 square inch of copper is recommended.
• How do I ensure the device is properly soldered?
  XP Power recommends using a soldering iron with a temperature of 250°C to 270°C and a solder with a melting point of 180°C to 200°C. The device should be soldered within 3 seconds to prevent thermal damage.
• What is the maximum capacitance value for the output capacitor?
  The maximum capacitance value for the output capacitor is 220uF. Exceeding this value may cause instability in the device.
• Can I use the JCA0605D03 in a high-humidity environment?
  Yes, the JCA0605D03 is designed to operate in humid environments. However, it's recommended to follow the recommended storage and handling procedures to prevent moisture-related issues.
• What is the recommended input voltage range for the device?
  The recommended input voltage range for the JCA0605D03 is 3.3V to 5.5V. Operating the device outside this range may affect its performance and reliability.
