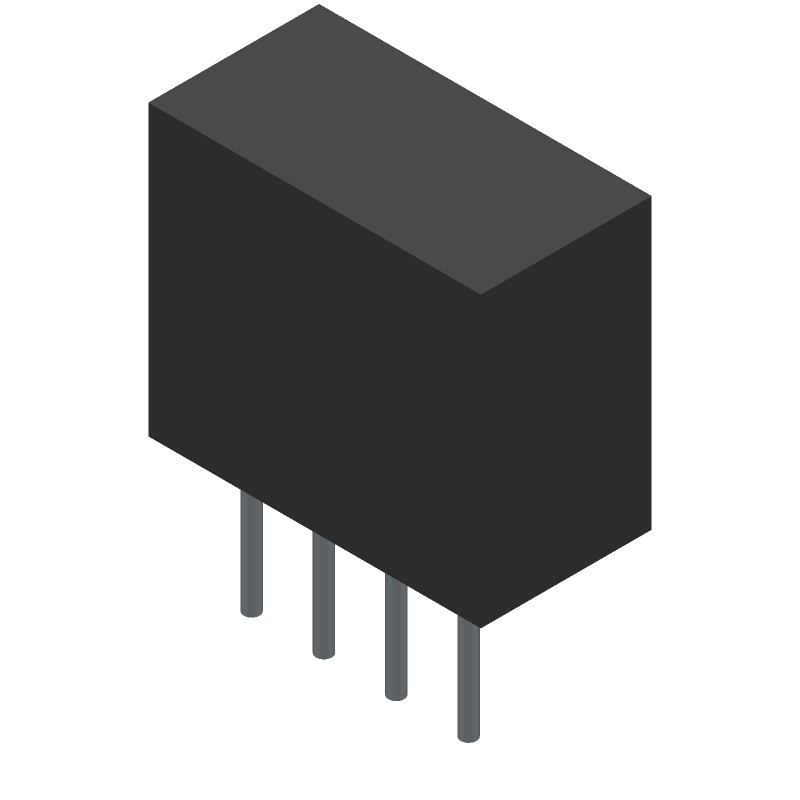

IK0524SA datasheet by XP Power

IK0524SA Frequently Asked Questions (FAQs)

• What is the maximum capacitance load for the IK0524SA?
  The maximum capacitance load for the IK0524SA is 10uF. Exceeding this value may affect the stability of the output voltage.
• Can the IK0524SA be used in a high-temperature environment?
  The IK0524SA is rated for operation up to 80°C ambient temperature, but derating is required above 60°C. Consult the datasheet for derating curves.
• Is the IK0524SA suitable for use in a high-vibration environment?
  The IK0524SA is designed to withstand moderate vibration levels, but it's recommended to consult XP Power's application notes for vibration testing and mounting guidelines.
• Can the IK0524SA be paralleled for higher output current?
  Yes, the IK0524SA can be paralleled for higher output current, but it's essential to ensure that the units are identical and properly connected to avoid oscillations and instability.
• What is the recommended input fuse rating for the IK0524SA?
  The recommended input fuse rating for the IK0524SA is 2A slow-blow or 1A fast-acting, depending on the specific application and input voltage.
