A good PCB layout for the HCPL-7720-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, the device should be operated within its recommended temperature range of -40°C to 100°C.
The recommended input signal amplitude for the HCPL-7720-300E is between 10 mV and 10 V, and the recommended frequency range is from DC to 10 MHz. However, the optimal input signal amplitude and frequency may vary depending on the specific application and noise environment.
To protect the HCPL-7720-300E from EMI, it's recommended to use a shielded enclosure, keep the device away from EMI sources, and use EMI filters or shielding on the input and output cables. Additionally, the device should be operated in a well-grounded system to minimize the effects of EMI.
The typical propagation delay of the HCPL-7720-300E is around 100 ns, but this can vary depending on the specific application, input signal frequency, and operating conditions.

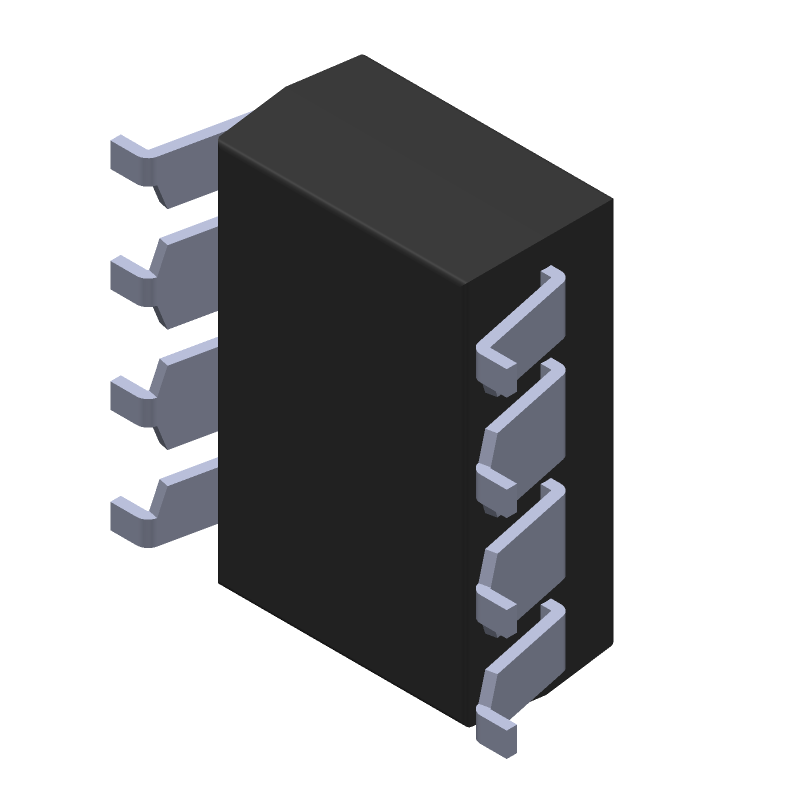

HCPL-7720-300E datasheet
by Avago Technologies
