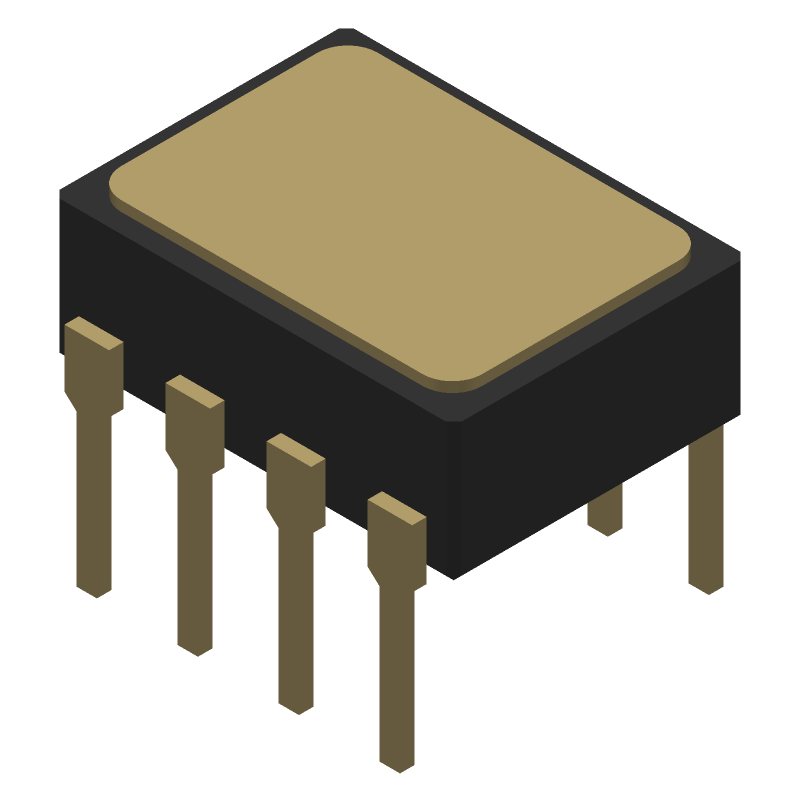

HCPL-5201#300 datasheet by Avago Technologies

HCPL-5201#300 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of HCPL-5201?
  A good PCB layout for HCPL-5201 involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce noise and electromagnetic interference (EMI).
• How do I ensure reliable operation of HCPL-5201 in high-temperature environments?
  To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
• What are the ESD protection requirements for HCPL-5201?
  HCPL-5201 has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag.
• Can I use HCPL-5201 in a high-voltage application?
  HCPL-5201 is rated for up to 3.75 kVrms of isolation voltage, but it's not recommended for use in high-voltage applications exceeding this rating. For higher voltage applications, consider using a different isolation device or consulting with a Broadcom engineer.
• How do I troubleshoot issues with HCPL-5201, such as output not switching or incorrect output voltage?
  To troubleshoot issues with HCPL-5201, check the input signal, output load, and power supply voltage. Verify that the device is properly connected and configured, and consult the datasheet and application notes for guidance. If issues persist, contact Broadcom support for further assistance.
