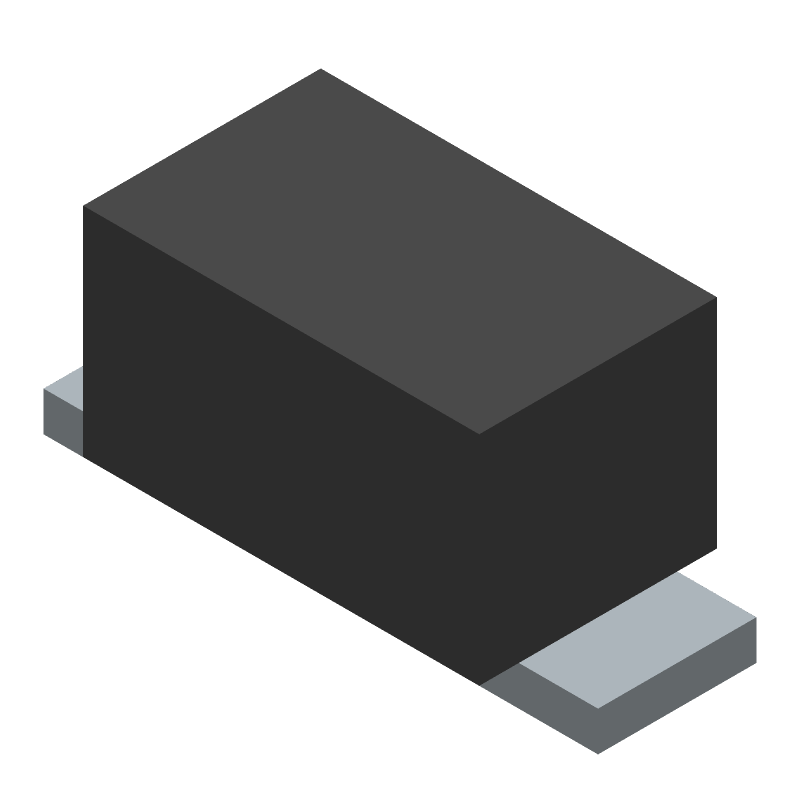

ESDAXLC6-1MY2 datasheet by STMicroelectronics

ESDAXLC6-1MY2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal ESD protection?
  A good PCB layout for optimal ESD protection involves placing the ESDAXLC6-1MY2 close to the connector or interface it's protecting, using short traces, and minimizing the distance between the device and the protected line.
• How do I choose the correct ESD protection device for my specific application?
  To choose the correct ESD protection device, consider factors such as the interface or standard being protected (e.g., USB, HDMI, etc.), the voltage and current requirements, and the level of ESD protection required (e.g., 2kV, 4kV, etc.).
• What is the maximum operating temperature range for the ESDAXLC6-1MY2?
  The maximum operating temperature range for the ESDAXLC6-1MY2 is -40°C to 125°C, as specified in the datasheet.
• Can I use the ESDAXLC6-1MY2 for ESD protection in automotive applications?
  Yes, the ESDAXLC6-1MY2 is suitable for use in automotive applications, as it meets the requirements for ESD protection in the automotive industry, including ISO 10605 and IEC 61000-4-2 standards.
• How do I ensure the ESDAXLC6-1MY2 is properly soldered onto the PCB?
  To ensure proper soldering, follow the recommended soldering profile and handling procedures, and use a soldering iron with a temperature range of 250°C to 260°C. Avoid overheating the device or applying excessive force during soldering.
