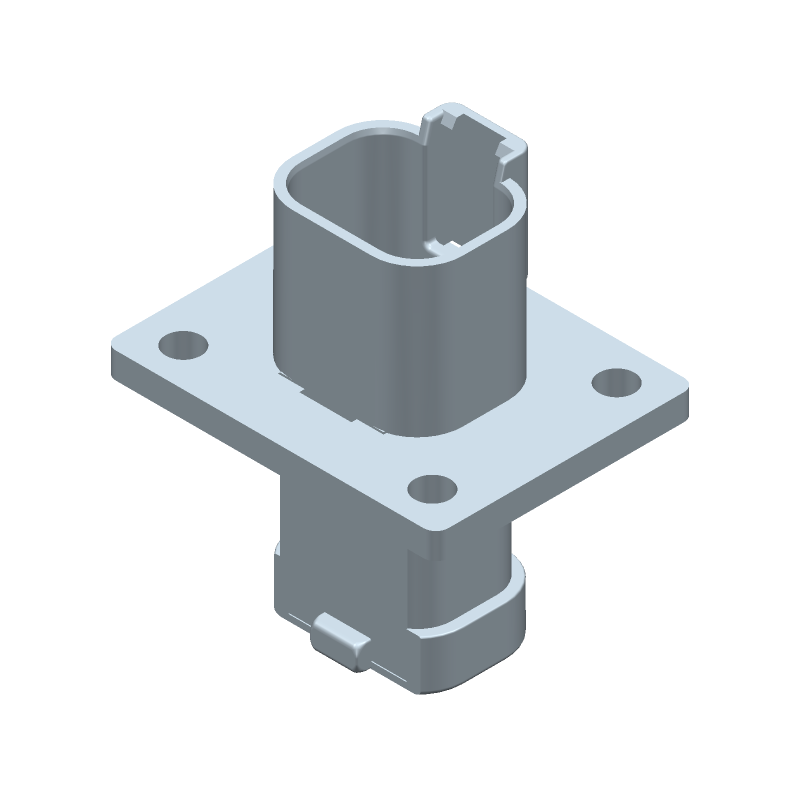

DT04-4P-LE11 datasheet by TE Connectivity

DT04-4P-LE11 Frequently Asked Questions (FAQs)

• What is the recommended torque value for the screw terminals?
  The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
• Can I use this connector in a high-vibration environment?
  Yes, the DT04-4P-LE11 is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
• Is the connector compatible with wire sizes other than AWG 20-24?
  While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
• What is the operating temperature range for this connector?
  The operating temperature range for the DT04-4P-LE11 is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
• Can I use this connector in a humid or wet environment?
  The DT04-4P-LE11 has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.
