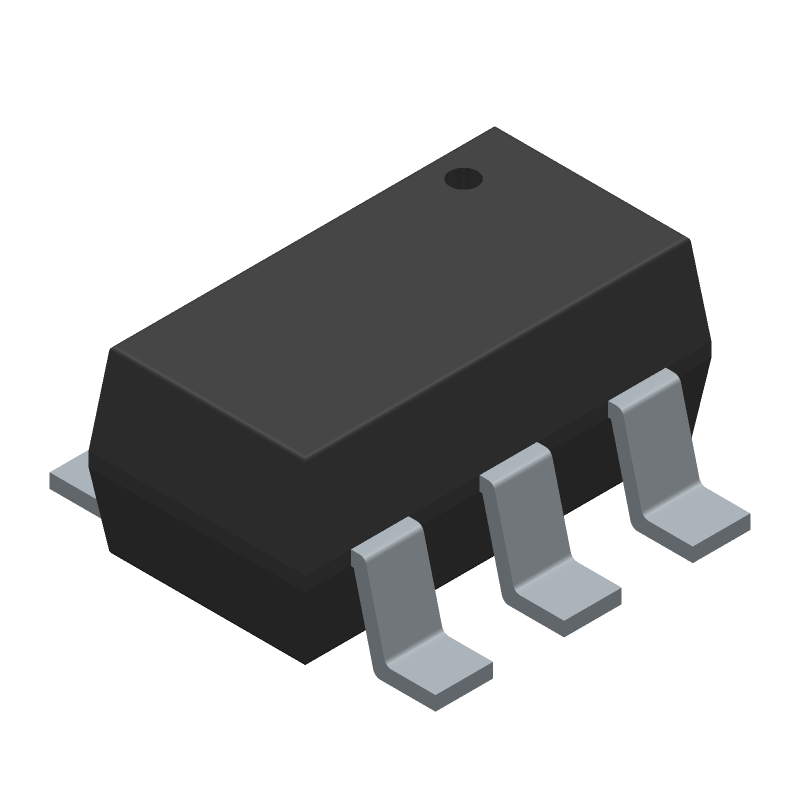

DMP3056LDM-7 datasheet by Diodes Incorporated

DMP3056LDM-7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the DMP3056LDM-7 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Additionally, a thermal via array under the device can help to dissipate heat more efficiently.
• How do I ensure the device is properly biased for optimal performance?
  To ensure proper biasing, make sure to follow the recommended voltage and current ratings. The DMP3056LDM-7 requires a minimum of 1.8V and a maximum of 5.5V for VCC. The device also has a maximum current rating of 3A. Ensure that the input voltage and current are within these ratings to prevent damage or malfunction.
• What are the ESD protection considerations for the DMP3056LDM-7?
  The DMP3056LDM-7 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat when handling the device, and ensure that the PCB is properly grounded during assembly.
• Can I use the DMP3056LDM-7 in a high-temperature environment?
  The DMP3056LDM-7 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked and that the PCB is designed to handle the increased thermal stress.
• What are the recommended storage and handling procedures for the DMP3056LDM-7?
  Store the DMP3056LDM-7 in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures. Handle the device by the body, avoiding touching the pins or electrical connections.
