The recommended PCB footprint for the D1213A-01T-7 is a standard SOT23-6 package with a 1.3mm x 1.3mm body size. The datasheet provides a recommended land pattern and soldering guidelines.
To ensure proper soldering, follow the recommended soldering temperature profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads and use a reflow oven or a hot air gun to solder the component.
The D1213A-01T-7 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range.
Yes, the D1213A-01T-7 is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive-grade components and is manufactured using a robust and reliable process.
To prevent electrostatic discharge (ESD) damage, handle the D1213A-01T-7 with an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or exposed die.

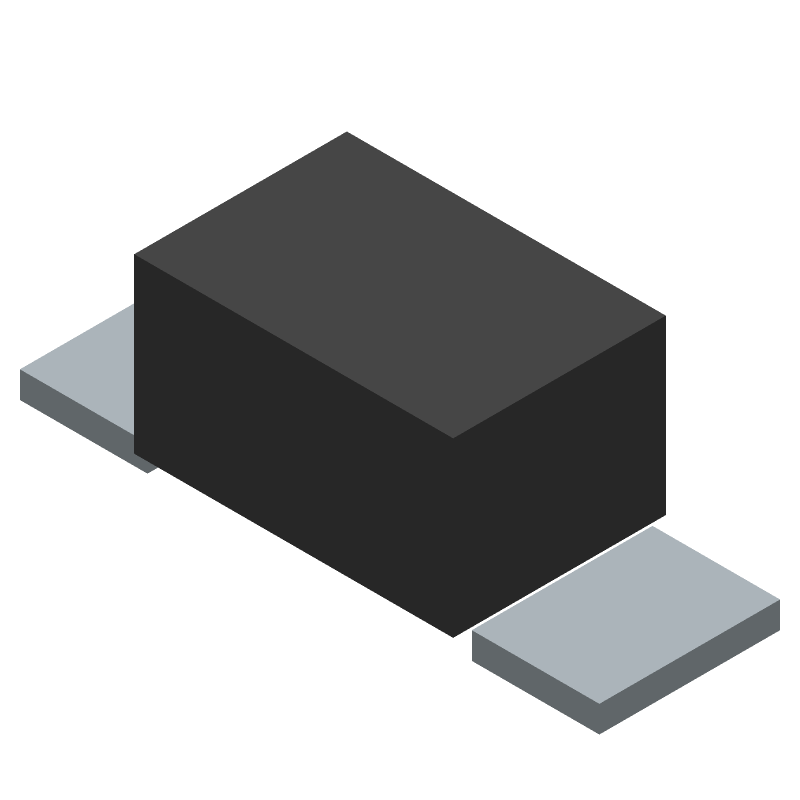

D1213A-01T-7 datasheet
by Diodes Incorporated
