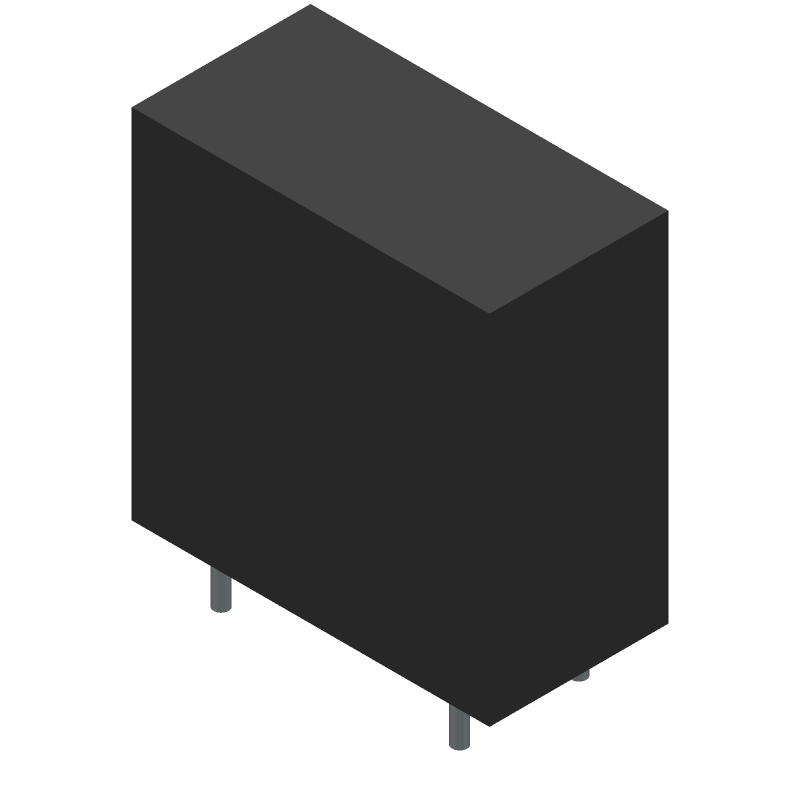

CMT-8105 datasheet by Triad Magnetics

CMT-8105 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the CMT-8105?
  Triad Magnetics recommends a symmetrical PCB layout with the transformer centered on the board, and the primary and secondary windings on opposite sides of the board to minimize electromagnetic interference (EMI).
• Can the CMT-8105 be used in a high-temperature environment?
  While the CMT-8105 has a maximum operating temperature of 130°C, it's recommended to derate the transformer's power handling by 1% for every 1°C above 100°C to ensure reliable operation.
• How do I ensure the CMT-8105 meets safety certifications such as UL and CE?
  Triad Magnetics provides a UL recognition file (E209544) and CE certification for the CMT-8105. Ensure that your design meets the specified creepage and clearance distances, and follow the recommended PCB layout and insulation requirements to meet safety certifications.
• What is the recommended wire gauge and insulation for the primary and secondary windings?
  Triad Magnetics recommends using a minimum of 18 AWG wire for the primary winding and 20 AWG wire for the secondary winding, with a minimum insulation rating of 150°C.
• Can the CMT-8105 be used in a high-vibration environment?
  While the CMT-8105 is designed to withstand normal vibration, it's recommended to secure the transformer to the PCB using a suitable adhesive or mechanical fastening method to prevent movement and ensure reliable operation in high-vibration environments.
