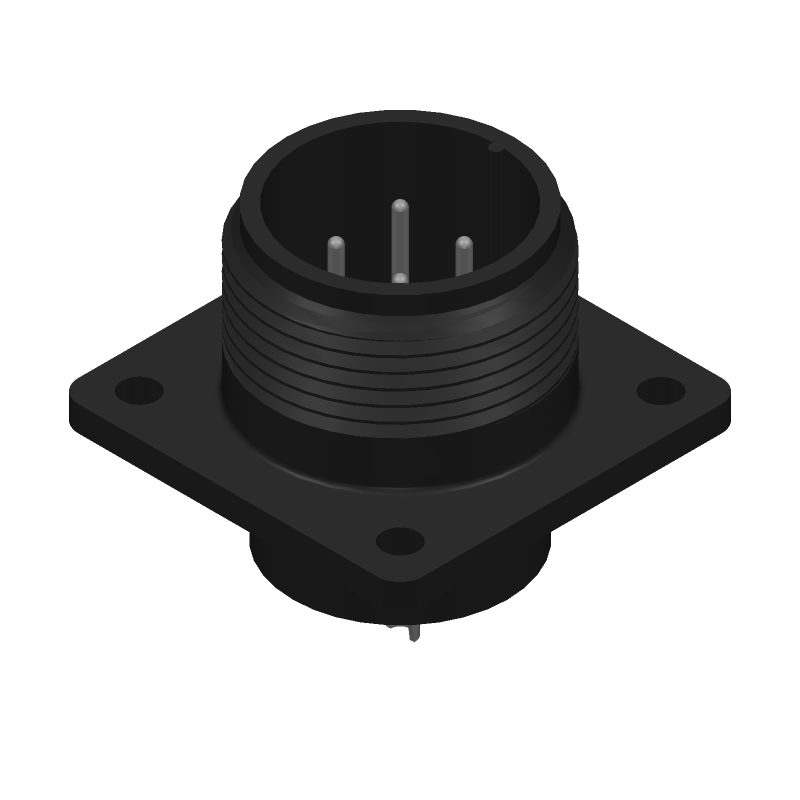

C90-3102R14S-2P datasheet by Harwin

C90-3102R14S-2P Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw threads?
  The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
• Can I use this connector in a high-vibration environment?
  Yes, the C90-3102R14S-2P is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
• Is this connector suitable for use in harsh environments, such as high temperatures or humidity?
  Yes, the C90-3102R14S-2P is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
• What is the mating cycle life of this connector?
  The C90-3102R14S-2P has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
• Can I use this connector with a PCB thickness other than 1.6 mm?
  Yes, the C90-3102R14S-2P can be used with PCB thicknesses ranging from 1.2 mm to 2.4 mm, but the recommended PCB thickness is 1.6 mm for optimal performance.
