The recommended land pattern for BZT52C6V2T-TP can be found in the Micro Commercial Components' application note or on their website. It typically includes a rectangular pad with a size of around 0.5mm x 0.5mm, with a solder mask clearance of 0.1mm.
To handle the ESD sensitivity of BZT52C6V2T-TP, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in an ESD-safe environment. Additionally, the device should be handled by the body or leads, rather than the glass diode, to prevent damage.
The maximum surge current that BZT52C6V2T-TP can withstand is typically specified in the datasheet as 30A for a 10/1000μs waveform. However, it's recommended to consult the datasheet or contact Micro Commercial Components for specific information on surge current capability.
BZT52C6V2T-TP is rated for operation up to 150°C, but its performance may degrade at high temperatures. It's recommended to consult the datasheet or contact Micro Commercial Components for specific information on high-temperature operation and any necessary derating.
To ensure the reliability of BZT52C6V2T-TP, it's recommended to follow proper design and manufacturing practices, such as using a robust PCB design, ensuring proper soldering and assembly, and performing thorough testing and validation. Additionally, it's recommended to consult the datasheet and application notes for specific guidance on reliability and design considerations.

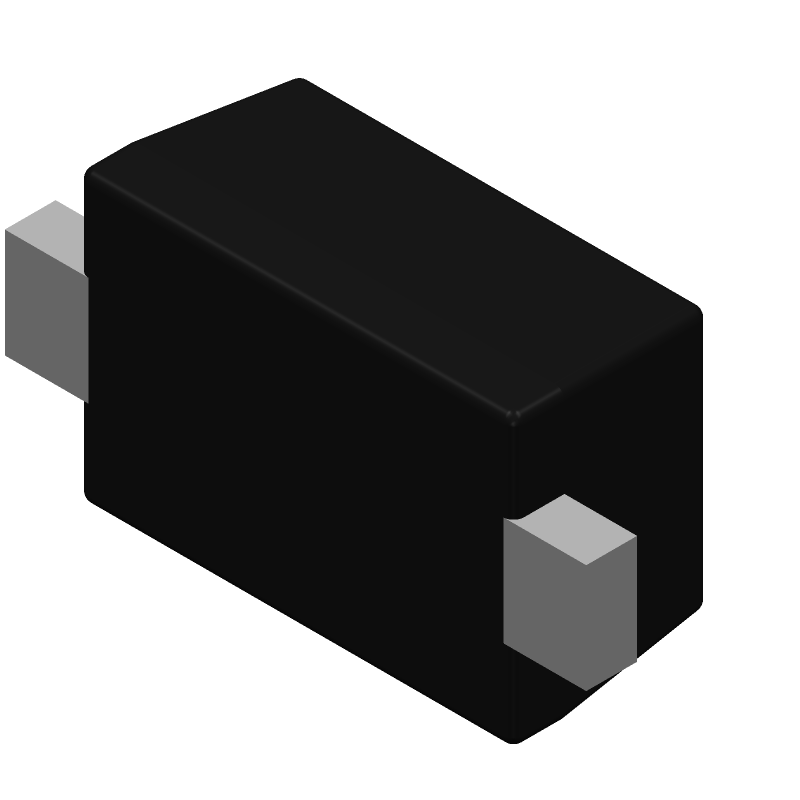

BZT52C6V2T-TP datasheet
by Micro Commercial Components
