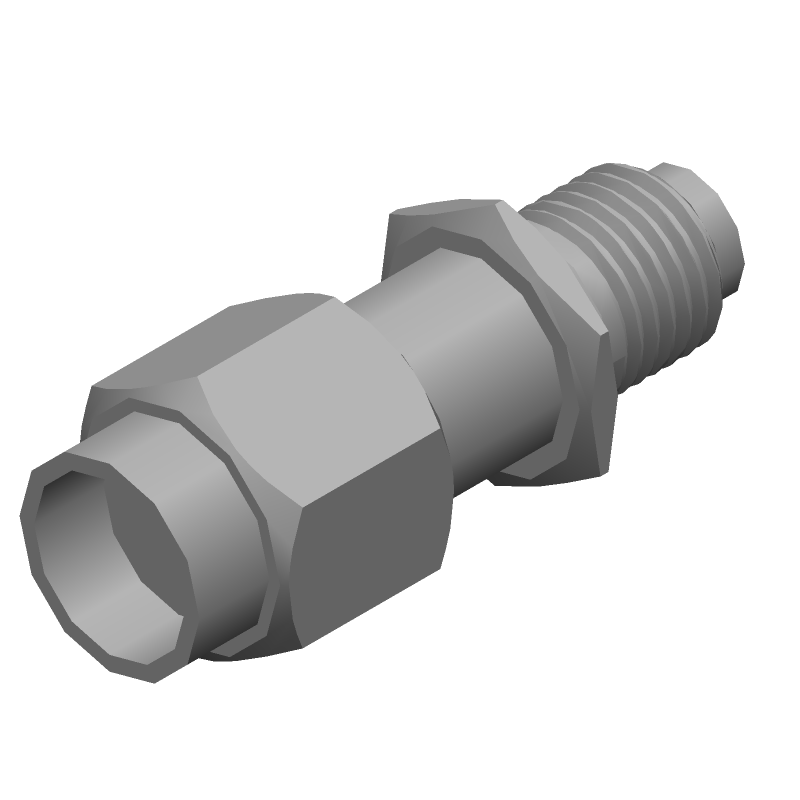

BW-S15W2+ datasheet by Mini-Circuits

BW-S15W2+ Frequently Asked Questions (FAQs)

• What is the maximum operating temperature for the BW-S15W2+?
  The maximum operating temperature for the BW-S15W2+ is +85°C, but it's recommended to operate it at a maximum of +70°C for optimal performance and reliability.
• Can I use the BW-S15W2+ in a high-humidity environment?
  While the BW-S15W2+ is designed to operate in a normal humidity environment, it's not recommended to use it in high-humidity environments (>80% RH) without proper sealing or protection to prevent moisture ingress.
• What is the recommended PCB layout and grounding scheme for the BW-S15W2+?
  Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the component to minimize electromagnetic interference (EMI) and ensure optimal performance.
• Can I use the BW-S15W2+ in a switching power supply application?
  While the BW-S15W2+ can handle high-frequency signals, it's not recommended to use it in switching power supply applications due to its limited power handling capability and potential for electromagnetic interference (EMI).
• What is the recommended soldering temperature and time for the BW-S15W2+?
  Mini-Circuits recommends a soldering temperature of 260°C (500°F) and a soldering time of 3-5 seconds to prevent damage to the component.
