A good PCB layout for the B140WS-7 should include a large copper area for heat dissipation, with multiple vias connecting the top and bottom layers to reduce thermal resistance. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive interface material, and consider derating the device's power handling according to the datasheet's thermal derating curve.
The B140WS-7 has built-in ESD protection, but handling precautions are still necessary. Use an anti-static wrist strap, mat, or workstation, and avoid touching the device's pins or handling it in environments with high electrostatic potential.
Yes, the B140WS-7 can be used in switching regulator applications. However, ensure the device is properly biased, and the switching frequency is within the recommended range to avoid overheating and ensure reliable operation.
Store the B140WS-7 in its original packaging or an anti-static bag, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads.

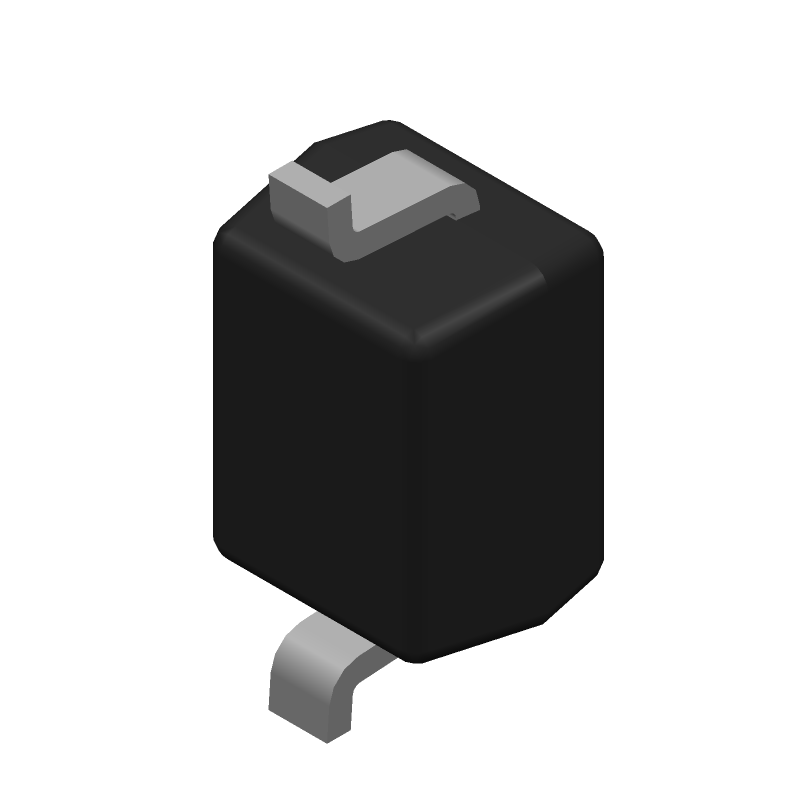

B140WS-7 datasheet
by Diodes Incorporated
