The recommended land pattern for AHA0608470M035R can be found in the Kyocera AVX Components' land pattern recommendation document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
While the datasheet specifies an operating temperature range of -55°C to 125°C, AHA0608470M035R can be used in high-temperature applications with some limitations. However, it's essential to consult with Kyocera AVX Components' application engineers to determine the maximum temperature rating and any necessary derating factors for the specific application.
AHA0608470M035R is designed for high-frequency applications, but its performance may vary depending on the specific frequency range and operating conditions. Engineers should consult the datasheet and application notes for guidance on high-frequency performance, and may need to perform their own testing and characterization to ensure the component meets their specific requirements.
Yes, AHA0608470M035R is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
The typical moisture sensitivity level (MSL) of AHA0608470M035R is MSL 3, which means it can withstand a maximum of 168 hours of exposure to 30°C/60% relative humidity before soldering. However, it's essential to follow the recommended storage and handling procedures to prevent moisture absorption and ensure optimal performance.

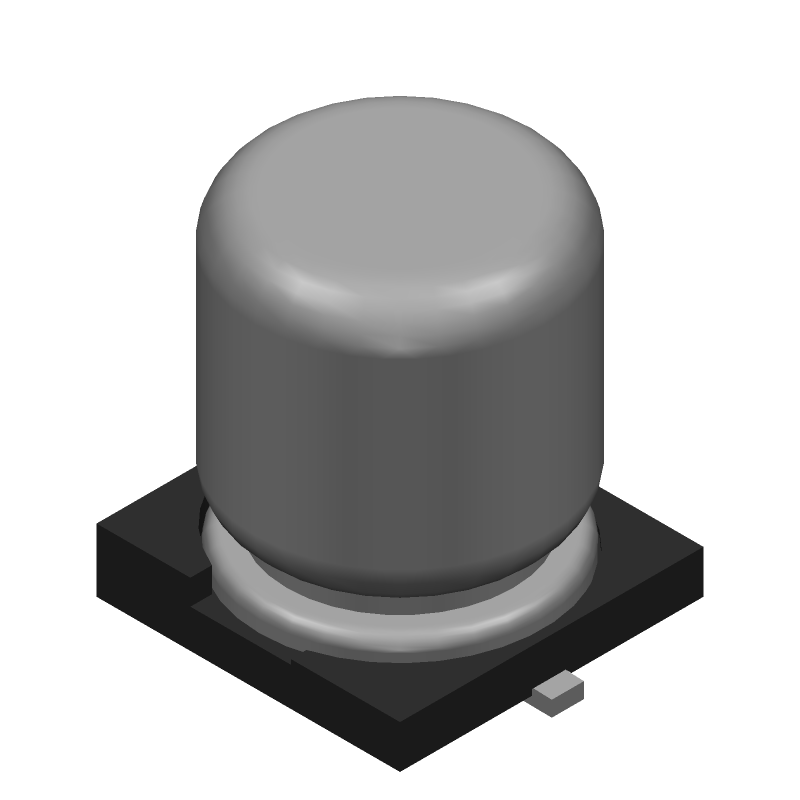

AHA0608470M035R datasheet
by Kyocera AVX Components
