39-01-2041
datasheet
by Molex
Description

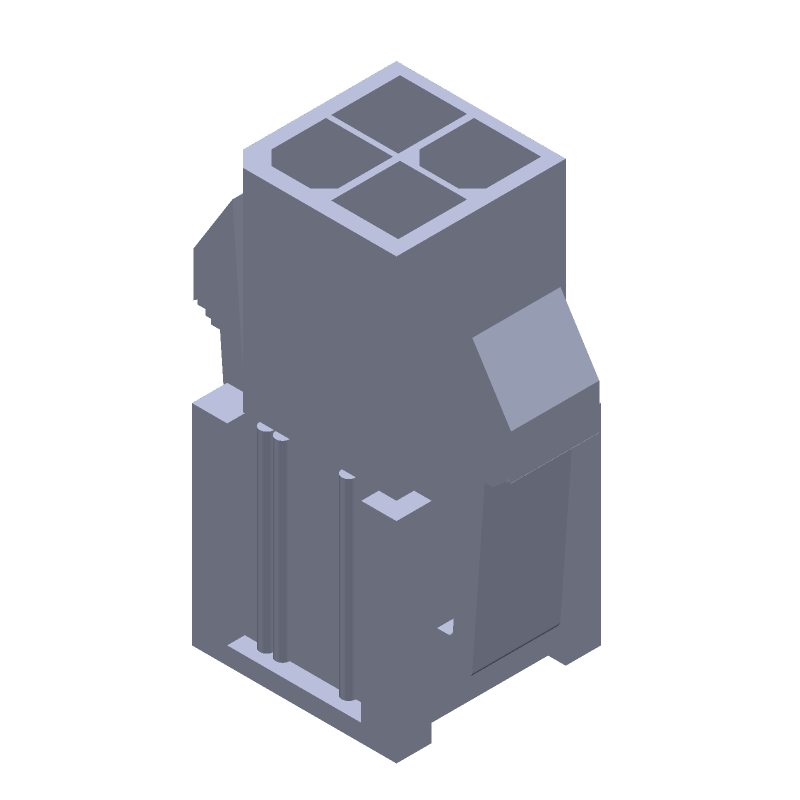

Connector Housing; Gender:Male; Number of Contacts:4; Series:5559; Body Material:PA Polyamide (Nylon); Connecting Termination:Crimp; Mounting Type:Header; Number of Rows:2; Operating Temp. Min:-40 C; Pitch Spacing:4.2mm
Datasheet Type
Original
RoHS
Yes
Pb Free
Yes
Lifecycle
Active
ECCN
EAR99
HTS Code
8536.69.40.30
Schedule B
8536.69.40.30
Price & Stock
Find it at Findchips.com
Equivalent Parts
!
Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
5557-04R-400
0039012045
39014041
5557-04R-BL
0039014041
39-01-2041
datasheet preview
Download Datasheet
39-01-2041 Frequently Asked Questions (FAQs)
What is the recommended torque for the screw terminals?
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
Can I use this connector in high-vibration applications?
Yes, the 39-01-2041 connector is designed to withstand vibrations and is suitable for use in high-vibration applications.
What is the operating temperature range for this connector?
The operating temperature range for the 39-01-2041 connector is -40°C to 105°C (-40°F to 221°F).
Is this connector suitable for outdoor use?
Yes, the 39-01-2041 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
Can I use this connector with wire sizes other than 24 AWG?
Yes, the 39-01-2041 connector can accommodate wire sizes ranging from 20 AWG to 26 AWG, but 24 AWG is the recommended size.
