The recommended land pattern for the 2512R-153K is a rectangular pad with a size of 2.5mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape to ensure proper soldering and thermal management.
The 2512R-153K is designed for high-frequency applications up to 1 GHz, with a self-resonant frequency (SRF) of 1.2 GHz. It exhibits low insertion loss and high impedance at high frequencies, making it suitable for RF and microwave circuits.
The 2512R-153K has a maximum operating temperature of 125°C, making it suitable for most commercial and industrial applications. However, it's essential to derate the component's current rating and consider thermal management strategies for high-temperature environments.
The recommended soldering profile for the 2512R-153K is a reflow soldering process with a peak temperature of 260°C, a dwell time of 20-30 seconds, and a ramp rate of 3°C/second. Hand soldering is not recommended due to the component's small size and high thermal density.
The 2512R-153K is a commercial-grade component, but API Delevan offers equivalent military-grade components (e.g., 2512R-153K-M) that meet the requirements of MIL-PRF-83446. These components undergo additional screening and testing to ensure high reliability and performance in demanding environments.

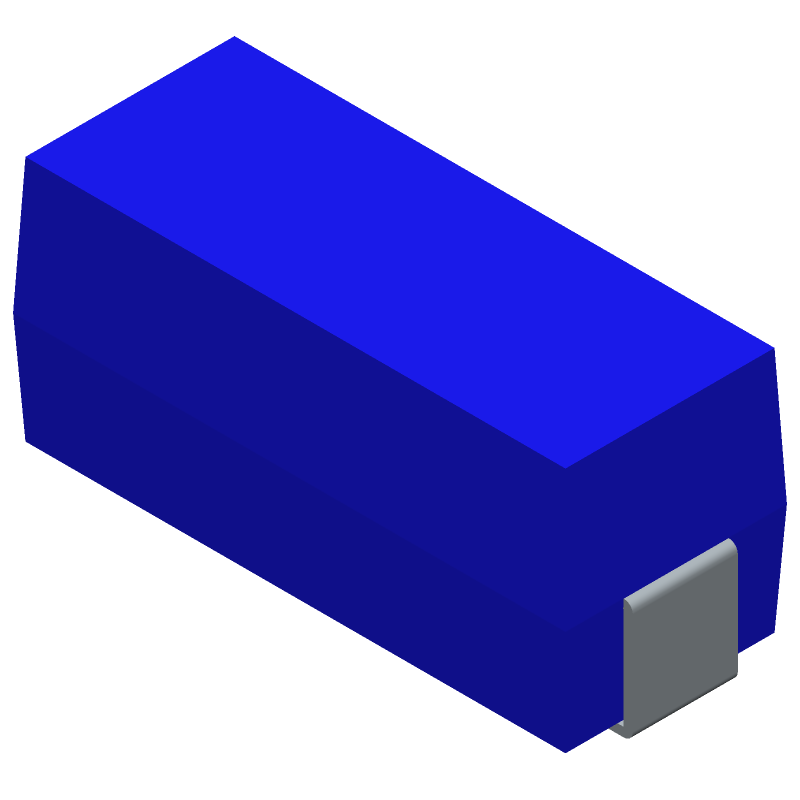

2512R-153K datasheet
